Final Design

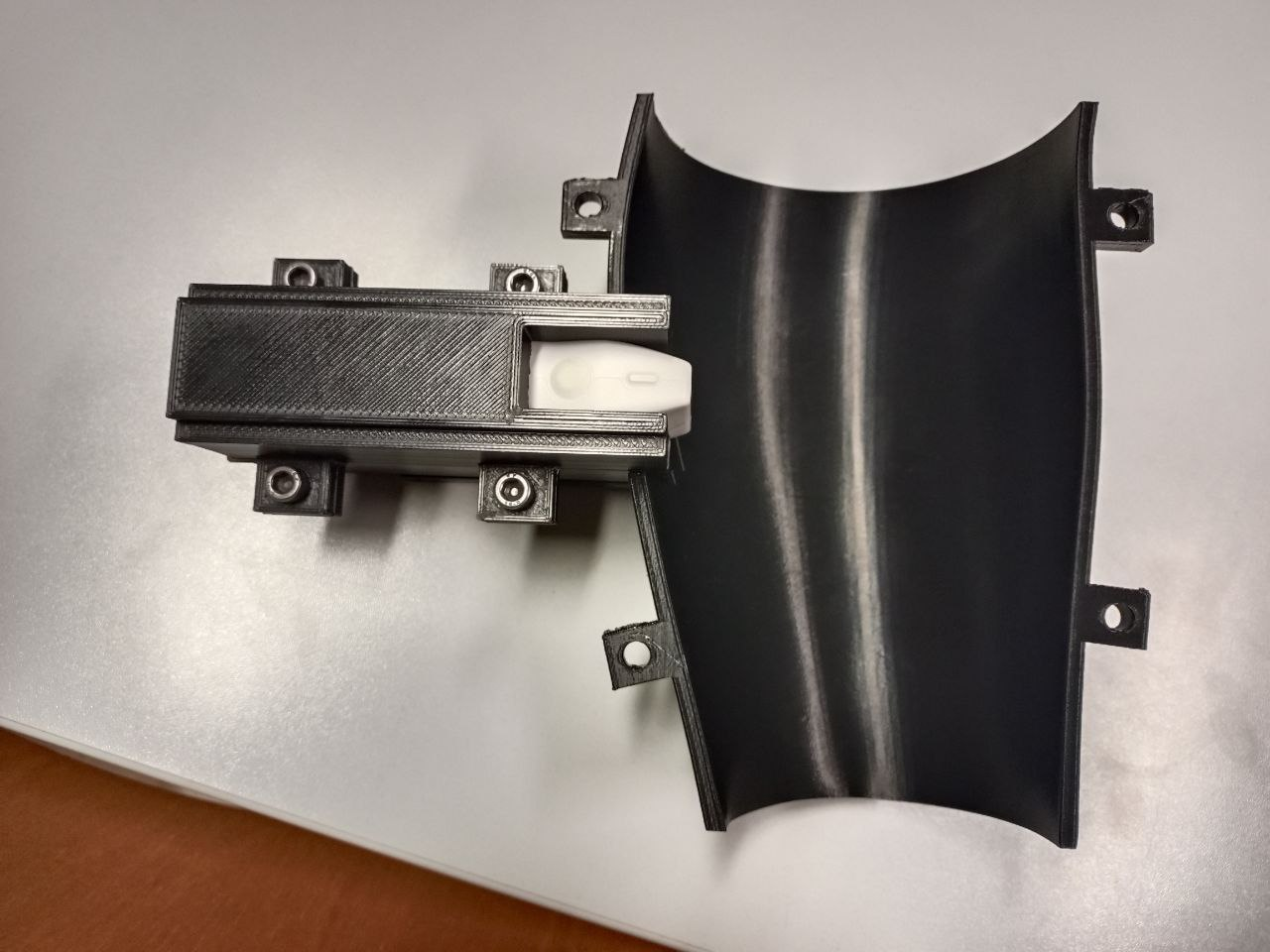

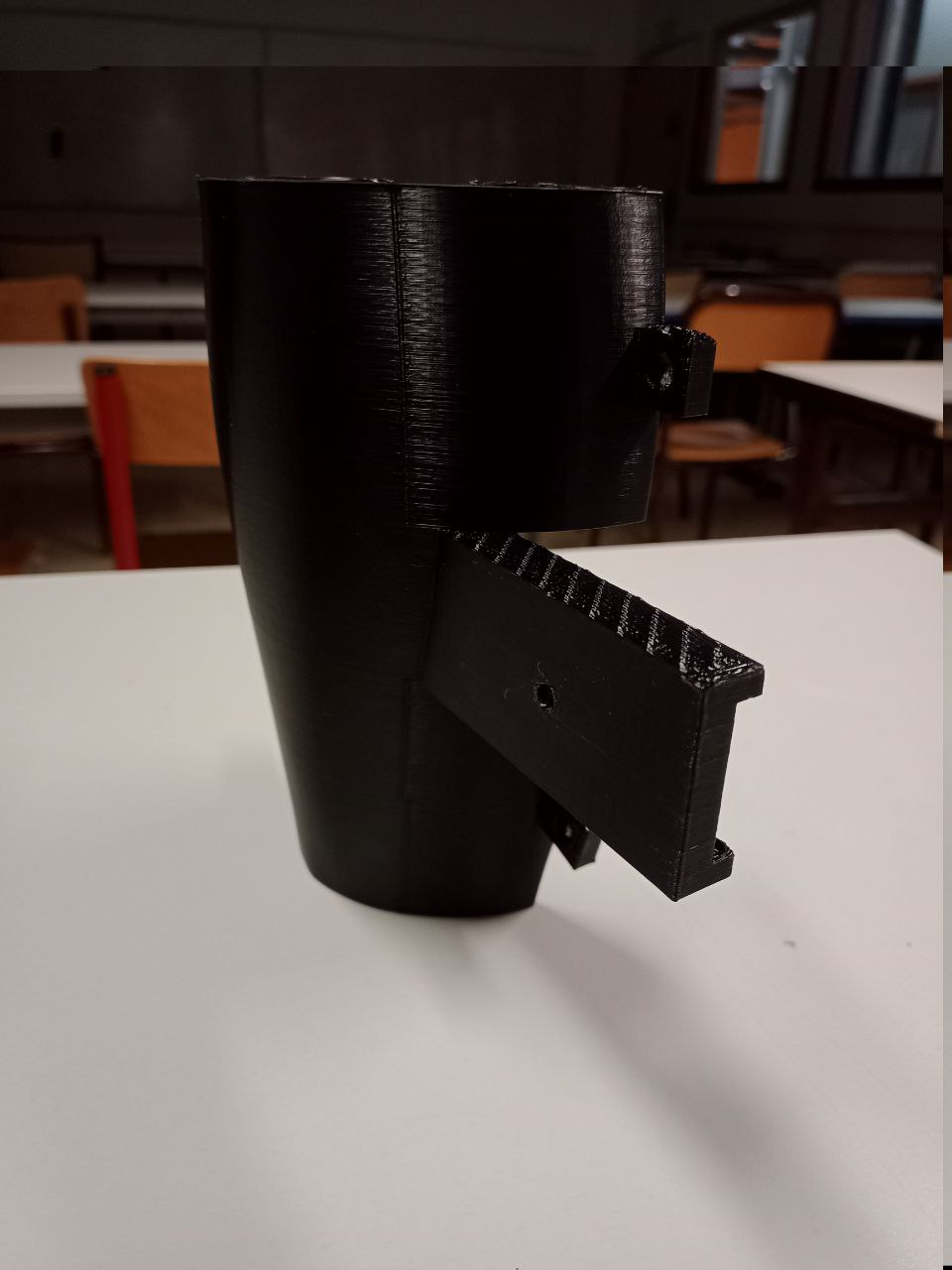

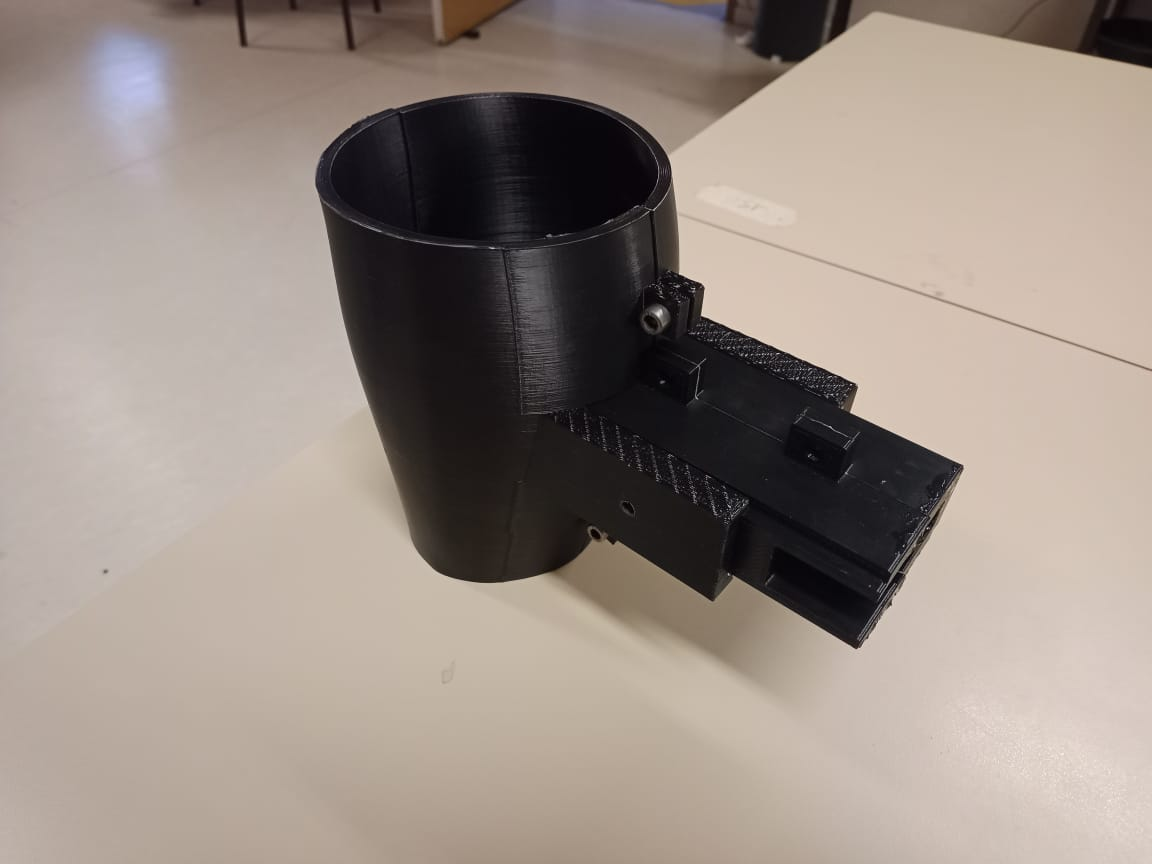

The final design which was approved, printed and suitable for the experiment is shown below. The design consists of four parts that are assembled by using M6 screws:

• Socket for the leg (2 parts to be connected)
• Support for the probe (2 parts to be connected)
• Screws (M6, 9 pieces)

The eauipment has the sliding mechanism which allows to easily assemble the parts and to control the desired depth of the probe.
